Overview

Connections are how you reach MCP servers. MCP Explorer supports multiple transport types, authentication methods, and provides encrypted storage for all secrets.

Key Capabilities

🔌 Multiple Transports

stdio, HTTP, and SSE (Server-Sent Events)

🔐 Encrypted Secrets

AES-256 encryption for API keys, client secrets, and tokens

🎫 Multiple Auth Methods

Custom headers (Bearer, Basic, API keys) and Azure client credentials

🔍 Real-time Search

Find connections by name, description, or auth type

📌 Persistent State

Automatic saving of connection configurations

🏷️ Auth Badges

Visual indicators showing authentication type at a glance

🔄 Auto-Reconnection

Automatic retry on disconnections during operations

⚡ Lazy Connections (Chat)

Connections open only when needed on Chat tab

Creating Connections

Connection Form

Required fields:

  • Name: Friendly identifier
  • Endpoint: Server connection string

Optional fields:

  • Note: Description or helper text
  • Authentication: Custom headers or Azure credentials

Endpoint format by transport:

  • stdio: stdio:///path/to/executable

  • Streamable HTTP: http://localhost:3000 or https://api.example.com

  • SSE: http://localhost:3000/sse

    ℹ️ SSE or Server-Sent Events has ben deprecated for Streamable HTTP transport

Endpoint of a MCP Server running locally when running MCP Explorer from a docker container:

  • Streamable HTTP: http://host.docker.internal:5156

📸 Screenshot:

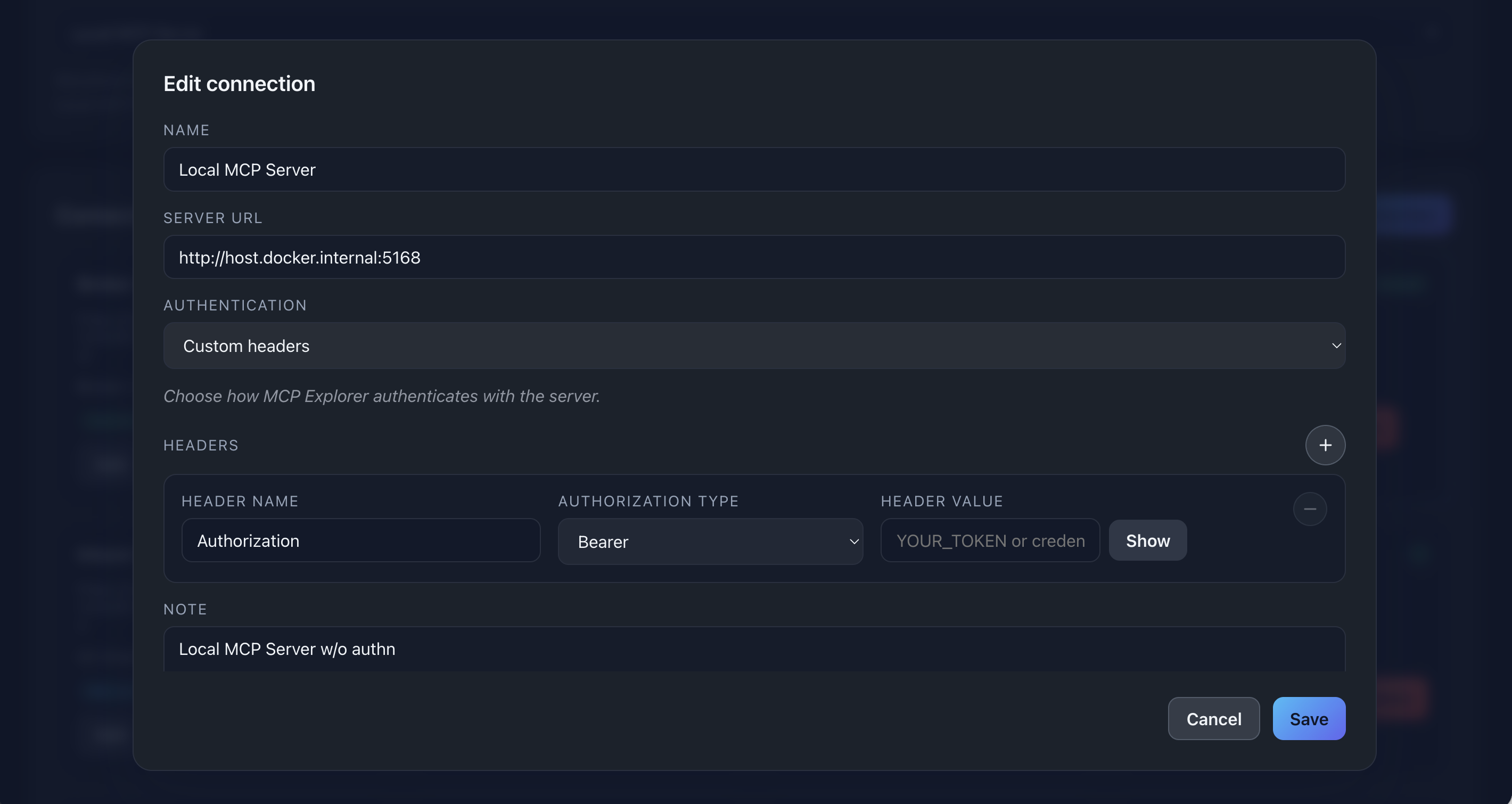

connection-form-complete

Description: Show the complete connection form with all fields filled, demonstrating a typical configuration

Authentication Methods

Custom Headers

Use this for any header-based authentication.

Common patterns:

Bearer Token:

  Header Name: Authorization
Header Value: your-token-here
Authorization Type: Bearer

Sent as: Authorization: Bearer your-token-here

API Key:

  Header Name: X-API-Key
Header Value: abc123xyz
Authorization Type: (none)

Sent as: X-API-Key: abc123xyz

Basic Auth:

  Header Name: Authorization
Header Value: username:password (base64)
Authorization Type: Basic

Sent as: Authorization: Basic <base64-encoded>

Multiple Headers: You can add as many headers as needed:

  • Click ➕ Add Header for each additional header
  • Mix Authorization headers with other custom headers
  • All values are encrypted at rest

📸 Screenshot:

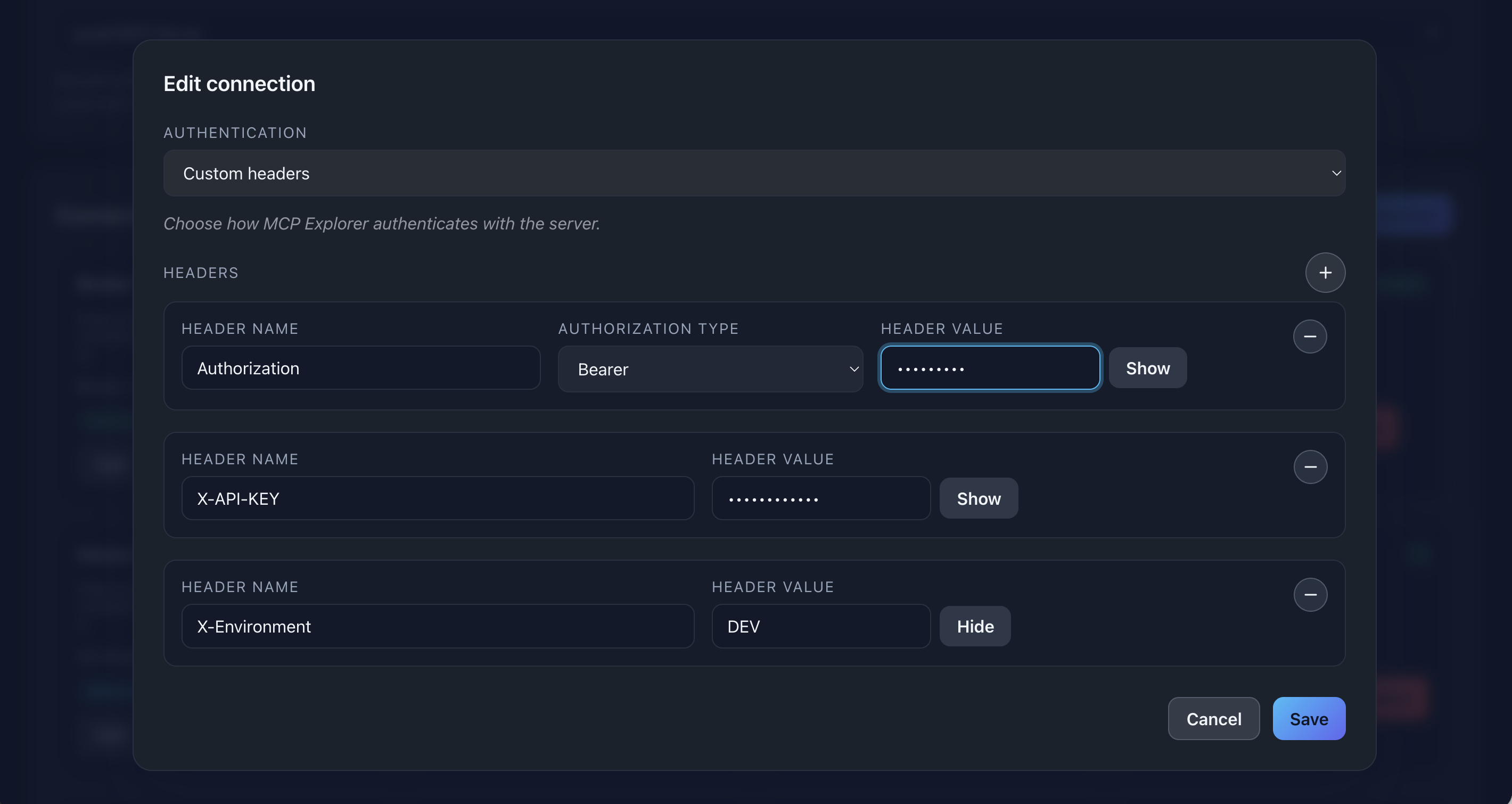

connection-custom-headers-multiple

Description: Show the custom headers section with 2-3 different headers configured (e.g., Authorization Bearer + X-API-Key)

info: Authorization Type Dropdown: Only appears for headers named “Authorization”. For other headers, enter values directly.

Azure Client Credentials

Automate OAuth 2.0 authentication for Azure Entra ID (formerly Azure AD).

Required fields:

  • Tenant ID: Your Azure tenant GUID
  • Client ID: Application (client) ID from App Registration
  • Client Secret: Secret value from Certificates & secrets

Optional fields:

  • Scope: API scope (default: api://your-api/.default)
  • Authority: Custom authority host (default: https://login.microsoftonline.com)

What happens automatically:

  1. MCP Explorer requests an access token using your credentials
  2. Token is injected into Authorization: Bearer <token> header
  3. Token is automatically refreshed before expiration
  4. You never manually manage the token

📸 Screenshot:

connection-azure-credentials-form

Description: Show the Azure client credentials form with all fields filled (use placeholder values like “00000000-0000-0000-0000-000000000000” for GUIDs)

Use cases:

  • Azure-hosted MCP servers
  • APIs protected by Entra ID
  • Enterprise services requiring app roles
  • Multi-tenant applications

Security Features

Encrypted Storage

All secrets are encrypted before being saved to disk:

  • API keys
  • Bearer tokens
  • Client secrets
  • Custom header values

Encryption method:

  • Algorithm: AES-256
  • Platform: Windows DPAPI (Data Protection API)
  • Scope: Current user
  • Storage: %APPDATA%\McpExplorer\settings.json

warning: Important: Encrypted secrets are tied to your Windows user account. They cannot be decrypted by other users or on different machines.

Auth Badges

Connections display visual badges indicating their authentication type.

Badge types:

  • Custom headers: Shows “Custom Header” badge
  • Azure credentials: Shows “Entra” or “Client Credentials” badge
  • No auth: No badge displayed

Benefits:

  • Quickly identify which connections use which auth method
  • Spot misconfigured connections at a glance
  • Organize connections by security requirements

📸 Screenshot:

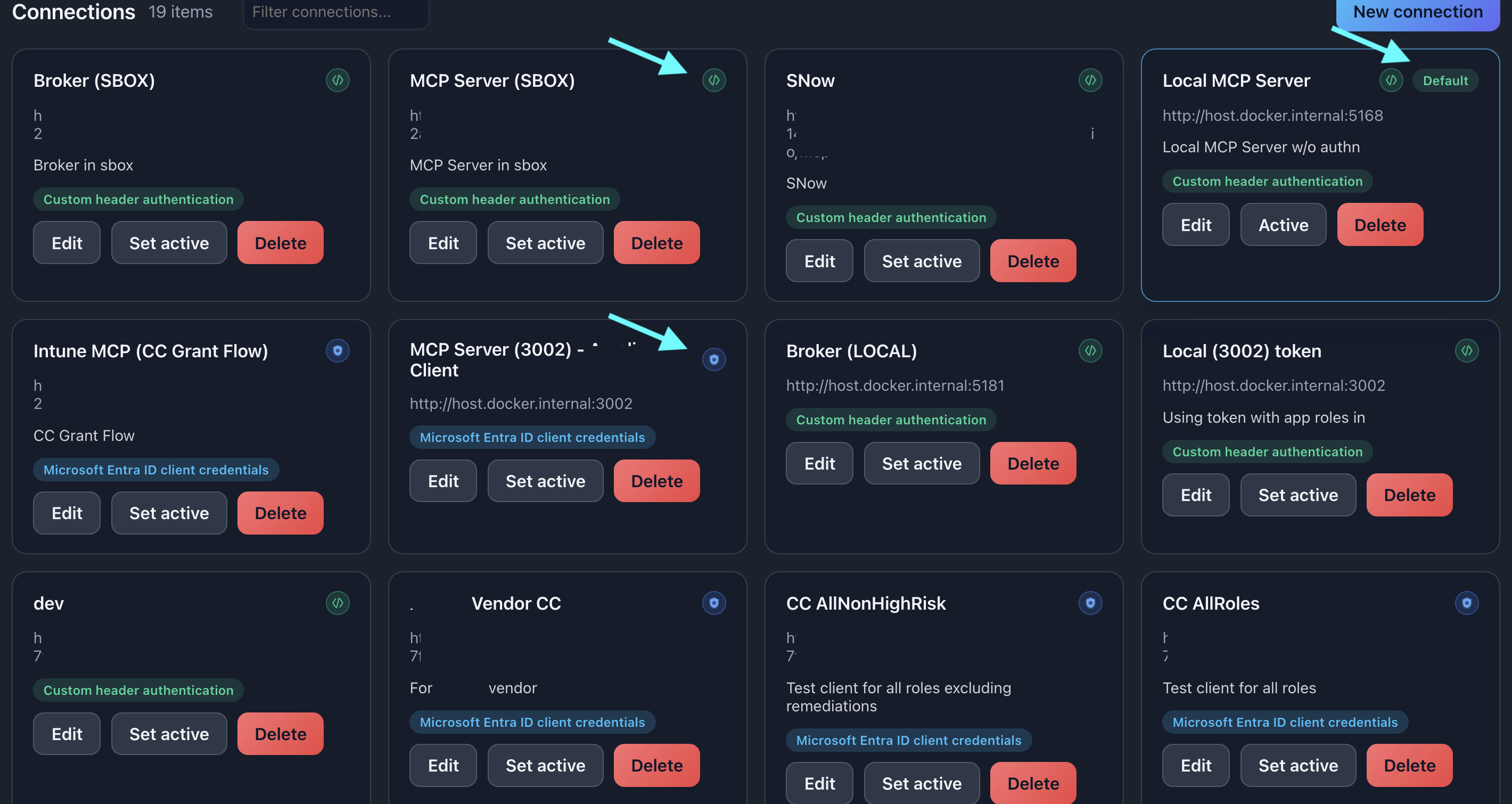

connection-list-auth-badges

Description: Show the connections list with multiple connections displaying different auth badges (and the default connection)

Search & Filter

The search box filters connections instantly as you type.

Searchable fields:

  • Connection name
  • Connection description (note field)
  • Authentication type (“custom header”, “entra”, “client credentials”)

Features:

  • 300ms debounce for smooth typing
  • Case-insensitive matching
  • Highlight matches with yellow background
  • Keyboard shortcuts: Escape to clear, auto-focus on tab open

📸 Screenshot:

connection-search-active

Description: Show the search box with a term entered and matching text highlighted in the connections list

Search Examples

Find by name:

  Search: "weather"
Results: "Weather API", "Weather Dev Server"

Find by auth type:

  Search: "entra"
Results: All connections using Azure client credentials

Find by description:

  Search: "production"
Results: Connections with "production" in the Note field

Connection States

Status Indicators

Connections show their current state:

States:

  • Disconnected (default): Gray or red indicator, no active connection
  • Connecting…: Orange/yellow indicator, connection in progress
  • Connected: Green indicator, active and ready

State transitions:

  Disconnected → [Click Connect] → Connecting... → Connected
Connected → [Server closes] → Disconnected (auto-reconnection may retry)
Connected → [Click Disconnect] → Disconnected

📸 Screenshot:

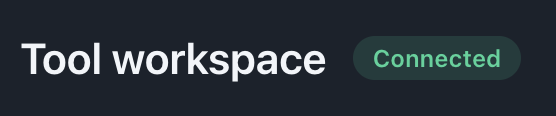

connection-states-visual-connected

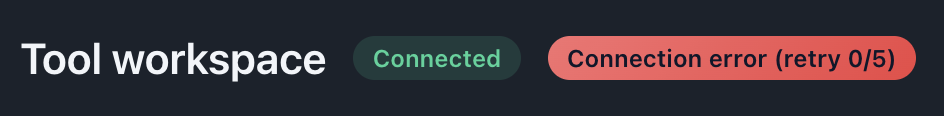

connection-states-visual-retry

connection-states-visual-retry-2

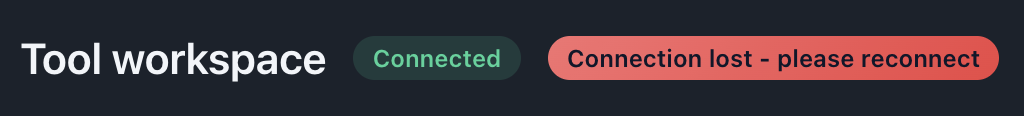

connection-states-visual-lost

Description: Show three connections in different states (connected, retrying, disconnected) with their respective indicators

Auto-Reconnection

If a connection drops during an operation, MCP Explorer automatically retries.

Behavior:

  • Trigger: Connection lost during tool/prompt/resource call
  • Action: Automatic reconnection attempts (with exponential backoff)
  • User feedback: Visual indicators show retry attempts
  • Success: Operation continues seamlessly
  • Failure: Error message displayed after max retries

Use cases:

  • Network hiccups
  • Server restarts
  • Temporary unavailability

Lazy Connections (Chat)

On the Chat tab, connections work differently:

Behavior:

  • Connections are not opened automatically
  • You check a checkbox to enable a connection
  • Connection opens only when checkbox is checked
  • Unchecking disconnects immediately

Benefits:

  • Conserve resources (don’t connect to unused servers)
  • Faster initial load
  • Control which tools are available to AI
  • Reduces unnecessary network traffic

📸 Screenshots:

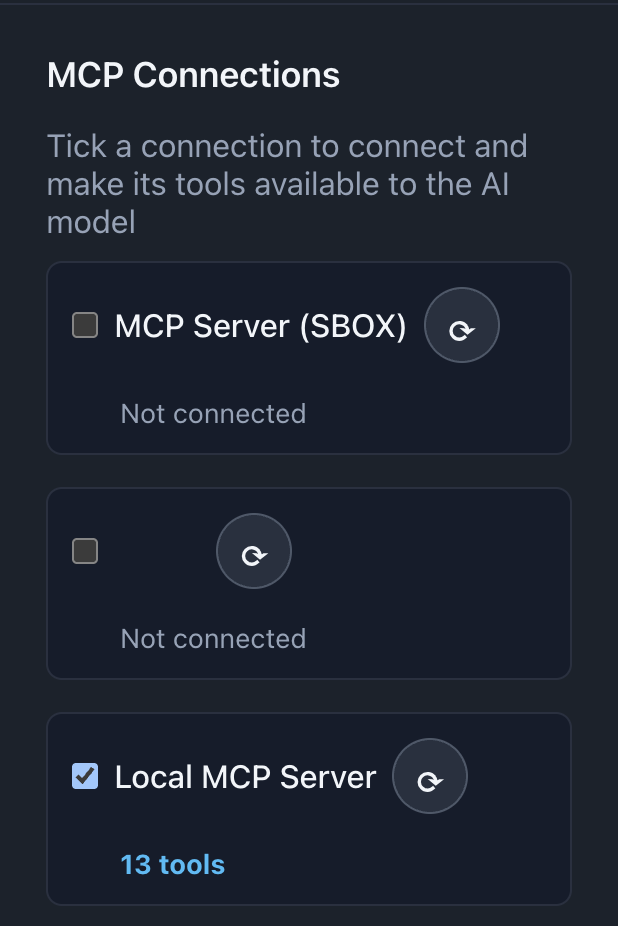

chat-lazy-connections

Description: Show the Chat page connections section with checkboxes (some checked, some unchecked) and connection status indicators

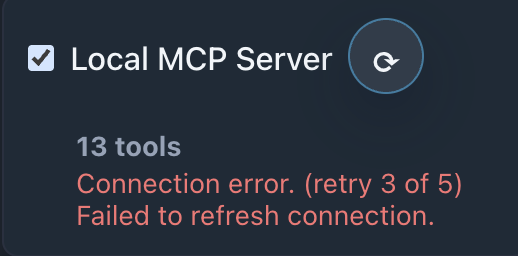

chat-lazy-connections-retry

Description: Show the Chat page connections section with connection retrying status indicators

chat-lazy-connections-lost

Description: Show the Chat page connections section with connection lost status indicators

Managing Connections

Edit a Connection

  1. Find the connection in the list
  2. Click the Edit button (✏️ pencil icon)
  3. Modify any fields (name, endpoint, auth, note)
  4. Click Save

What’s preserved:

  • Connection ID (internal)
  • Parameter history for tools
  • Favorite tools/prompts/resources

Delete a Connection

  1. Click the Delete button (🗑️ trash icon)
  2. Confirm the deletion

warning: Warning: Deleting a connection removes:

  • The connection configuration
  • Parameter value history
  • Favorites associated with this connection

This action cannot be undone.

Duplicate a Connection

To create a similar connection:

  1. Create a new connection
  2. Manually copy values from the existing one
  3. Modify the name and any differing fields
  4. Save

(Note: There’s no built-in “duplicate” button currently)

Common Connection Patterns

Local Development (stdio)

Use case: Testing local MCP server executables

  Name: Local Dev Server
Endpoint: stdio:///usr/local/bin/my-mcp-server
Auth: Custom headers (no headers added, or minimal headers)
Note: Development environment

HTTP API with API Key

Use case: Cloud-hosted MCP server with API key auth

  Name: Production Weather API
Endpoint: https://weather-api.example.com
Auth: Custom headers
  Header: X-API-Key = abc123xyz456
Note: Production instance (do not delete)

HTTP API with Bearer Token

Use case: API using JWT or OAuth bearer tokens

  Name: Auth Service
Endpoint: https://api.auth.example.com
Auth: Custom headers
  Header: Authorization = my-jwt-token (Bearer)
Note: Requires token refresh every 24h

Azure-Protected API

Use case: Enterprise API protected by Azure Entra ID

  Name: Azure MCP Service
Endpoint: https://my-api.azurewebsites.net
Auth: Azure client credentials
  Tenant ID: 00000000-0000-0000-0000-000000000000
  Client ID: 11111111-1111-1111-1111-111111111111
  Client Secret: ********
  Scope: api://my-api/.default
Note: App roles: mcptools.read, mcptools.execute

SSE Streaming Server

Use case: Real-time MCP server using Server-Sent Events

  Name: Real-time Monitor
Endpoint: http://localhost:8080/sse
Auth: Custom headers (or none)
Note: Streams live data updates

Troubleshooting

Connection Fails with 401/403

Problem: Authorization errors

Solutions:

  1. Verify API key/token is correct and not expired
  2. Check Authorization Type (Bearer vs Basic)
  3. For Azure: Ensure app registration has proper roles assigned
  4. Test credentials outside MCP Explorer (curl, Postman)
  5. Review server logs for detailed auth errors

stdio Executable Not Found

Problem: “command not found” or similar error

Solutions:

  1. Use the full absolute path to the executable
  2. Ensure the file has execute permissions (chmod +x)
  3. Test the command in a terminal first
  4. Check for typos in the path
  5. Verify the executable is compatible with your OS

Connection Hangs on “Connecting…”

Problem: Status stuck at “Connecting…”

Solutions:

  1. Verify the server is actually running
  2. Check endpoint URL/path is correct
  3. Test connectivity (ping, curl, browser)
  4. Review firewall/network restrictions
  5. Check server logs for startup errors
  6. Try disconnecting and reconnecting

Secrets Not Persisting

Problem: API keys/tokens don’t save between sessions

Solutions:

  1. Ensure application has write permissions to settings file
  2. Check %APPDATA%\McpExplorer folder exists
  3. Verify no file permission errors in console
  4. Try running as administrator (Windows)
  5. Check antivirus isn’t blocking file writes

Tips & Best Practices

🏷️ Descriptive Names

Use clear, descriptive names that indicate purpose (“Dev Weather”, “Prod Auth API”)

📝 Use the Note Field

Add context, requirements, or warnings in the Note field for future reference

🔐 Rotate Secrets Regularly

Periodically update API keys and tokens for security

🧪 Test in Isolation

Create separate connections for dev/staging/prod to avoid accidental production changes

📋 Document Dependencies

Note required app roles, scopes, or permissions in the Note field

🔍 Use Search

With many connections, search becomes invaluable—use descriptive names and notes

🎯 Organize by Environment

Prefix connection names with environment (e.g., “DEV - Weather”, “PROD - Weather”)
